CodeBS0052

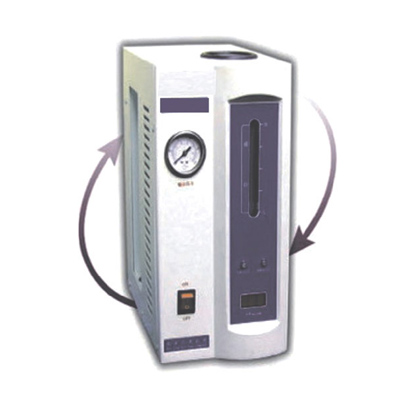

HYDROGEN GAS GENERATOR

Discription

High Purity Hydrogen Gas Generator
Hydrogen is produced by the electrolysis of water
The electrolysis separation pool is made of S.S
Low temp. of electrolysis pool
Equipped to prevent the returning of the liquid
Flow is visualized by digital display......

Request A Quote

High Purity Hydrogen Gas Generator
Hydrogen is produced by the electrolysis of water
The electrolysis separation pool is made of S.S
Low temp. of electrolysis pool
Equipped to prevent the returning of the liquid
Flow is visualized by digital display.

  • High Purity Hydrogen Gas Generator
  • Hydrogen is produced by the electrolysis of water
  • The electrolysis separation pool is made of S.S
  • Low temp. of electrolysis pool
  • Equipped to prevent the returning of the liquid
  • Flow is visualized by digital display
  • Over voltage & over current protection
MODEL
TYPEOF GENERATOR HYDROGEN GAS GENERATOR AIR GENERATOR
Make LABMAN
Purity 99.999%
Output Flow(H2) ( Max.) 300ml/min 500ml/min N/A
Output Flow (Air) N/A N/A 5L /min
Output Pressure 0.4Mpa 0.6Mpa
Ambient temperature 0 - 40°C
Power Wattage 150 W
Gen. Dim. LxWxH (mm) 350 x 190 x 300
Power supply 220 V / 50 Hz
Gross Weight 14 Kg 15 kg
