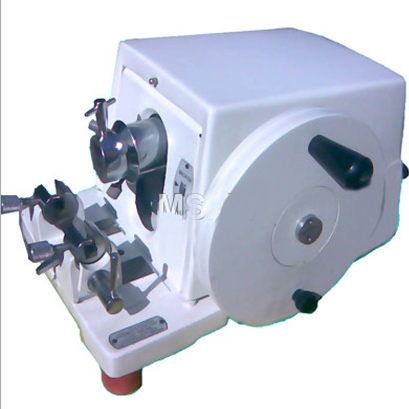

SENIOR ROTARY MICROTOME
Discription
Vibration free operation. Smooth Drive Wheel with Locking. Study, rigid construction.Minimum maintenance......
Vibration free operation. Smooth Drive Wheel with Locking. Study, rigid construction.Minimum maintenance.
- Vibration free operation.
- Smooth Drive Wheel with Locking.
- Conveniently located feed indicator.
- Automatic feed release mechanism.
- Study, rigid construction.
- Minimum maintenance.
| Specifications | Senior Rotary Microtome | Senior Rotary Microtome | Senior Rotary Microtome |
| Section thickness range | 1-50 microns | 1-20 microns | |
| Section thickness setting | In steps 1 micron | ||
| Knife length | 120mm | ||
| Operation | Manual | ||
| Block (Specimen) Holder | Set of three | ||
| Object feed | With wheel | ||
| Vertical specimen stroke | 55mm | 45mm | |
| Max. specimen size | 32mm | 40x55mm | |
| Adjustment with locks | Provided | ||
| Thickness control | Manual | ||
| Specimen orientation | 360° | ||
| Knife angle | 0 to 10° | ||
| Razor holder grip | Single | Double | Double |
| Dimensions | 300x300x240 mm | ||
| Weight | 35 kgs | 30 kgs | |
| Dust cover | Provided | ||
| Instruction manual | Provided | ||
| L Moulds | Optional 50x25x20mm | ||
